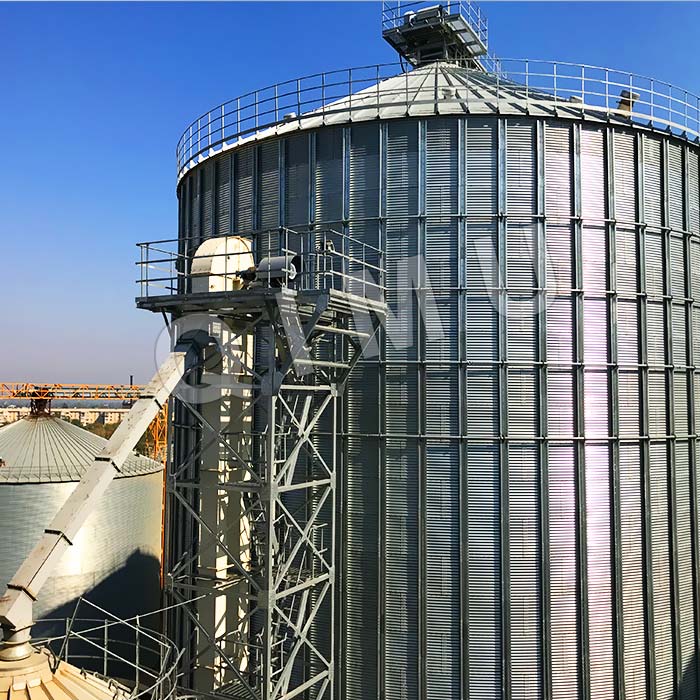

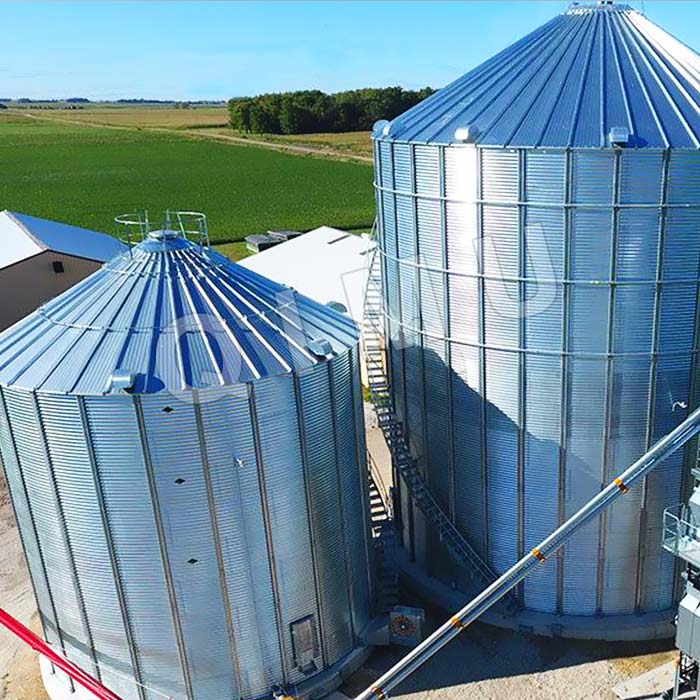

Flat bottom silos are commonly selected steel silos or steel bins to storage bulk grains and other materials. The storage volume of this type grain storage silo ranges from 39 m³ to 29726 m³. These grain bins are erected on flat or conical concrete foundations for long-term storage of large quantities of grain, seeds, pellets and granular products, etc. All our flat silos or flat bins are designed, manufactured and installed in accordance with D-4097 or ASTM D-3299 standards.
Specifications of Flat Bottom Silos
S.N. | Model | (m³) | Eave height(m) | Total height(m) |
Silo Diameter =20.1 m | ||||
194 | 20.1x16 | 6238 | 17.975 | 22.66 |
195 | 20.1x17 | 6596 | 19.095 | 23.78 |
196 | 20.1x18 | 6954 | 20.215 | 24.9 |
197 | 20.1x19 | 7311 | 21.335 | 26.02 |
198 | 20.1x20 | 7669 | 22.455 | 27.14 |
199 | 20.1x21 | 8026 | 23.575 | 28.26 |
200 | 20.1x22 | 8384 | 24.695 | 29.38 |
201 | 20.1x23 | 8742 | 25.815 | 30.5 |
202 | 20.1x24 | 9099 | 26.935 | 31.62 |
203 | 20.1x25 | 9457 | 28.055 | 32.74 |
Silo Diameter =21m | ||||
204 | 21.0x16 | 6987 | 17.975 | 24.03 |
205 | 21.0x17 | 7378 | 19.095 | 25.15 |
206 | 21.0x18 | 7769 | 20.215 | 26.27 |
207 | 21.0x19 | 8160 | 21.335 | 27.39 |
208 | 21.0x20 | 8551 | 22.455 | 28.51 |
209 | 21.0x21 | 8942 | 23.575 | 29.63 |
210 | 21.0x22 | 9333 | 24.695 | 30.75 |
211 | 21.0x23 | 9724 | 25.815 | 31.87 |
212 | 21.0x24 | 10115 | 26.935 | 33.99 |
213 | 21.0x25 | 10506 | 28.055 | 34.11 |
